Anti halo photoelectric glass window

Views:

167

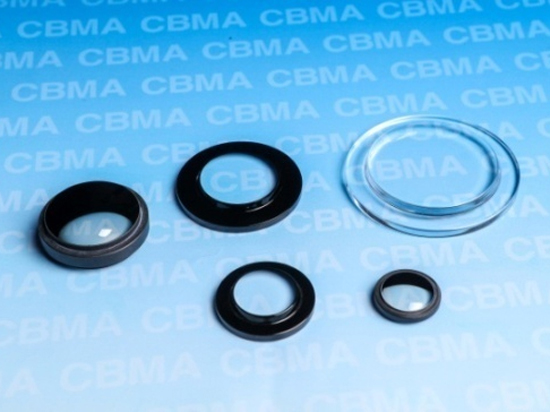

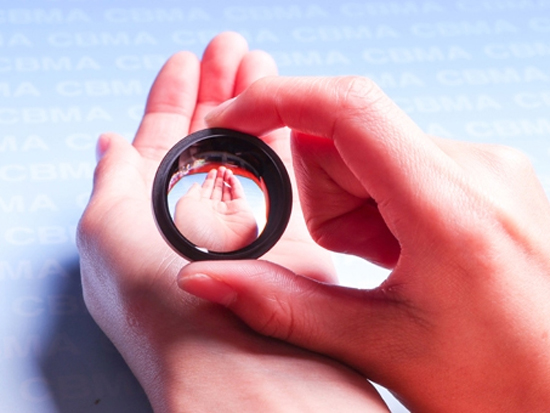

Anti halo photoelectric glass window

① The substrate material of photocathode is the key material that determines the cathode sensitivity of the key technical index of low light level night vision. It is the core material of high-definition and long-range low light level night vision;② Product users are exempted from inspection, and

TEL：

0632-3026007

Product description

Antiveiling photoelectric glass (AVG) has characteristic of high transmission from UV to visible light in the effective area, while the transmission is almost zero in the high absorption layer. This layer is prepared by a special process and then it has a very strong absorption to stray light. So, photoelectric glass can eliminate flare, and improve clarity of night vision devices and other optical elements.

Effective aperture：Φ16~40mm

Coefficient of expansion：（50±2）×10-7/℃

nD：1.4960

Transmittance in effective area：≥90%

White light transmission of black layer：≤2%
