fiber image inverter

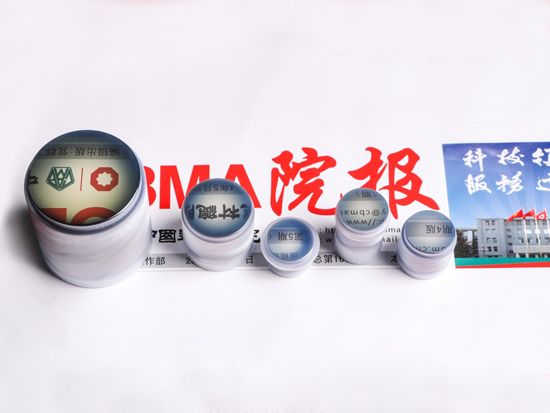

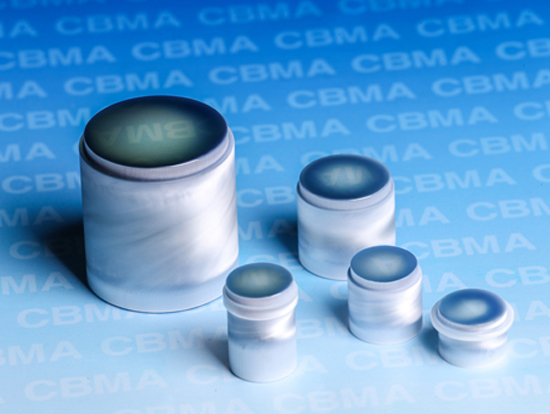

Fiber optic inverter ( FOI ) is prepared by reheating and reversing

through FOP. The input and output end of each optic fiber are reversed 180° around the axis of the device. Therefore, FOI is characteristic of reversing image by rotating the image for 180° in addition to all the features of FOP. The application of FOI solved the traditional optical image system of large volume, high field and low resolution problems, so that FOI are mainly used for image intensifier, in order to achieve the miniaturization of night vision equipment, but also applicable to any need to reverse the image. According to the needs of users, fiber diameter, size, shape and appearance of products can be customized.

Single-fiber diameter：Φ4~6μm

Effective aperture：Φ12~40mm

Coefficient of expansion：（60~90）×10-7/℃

numerical aperture：NA≥0.65
